Configure Social Sign-In in HitKeep

HitKeep social sign-in lets people use Google, GitHub, or Microsoft on the normal sign-in, signup, invitation, and account-security screens. Self-hosted operators enable each provider with an OAuth client ID and secret. HitKeep Cloud supplies its own provider configuration.

Social sign-in is instance-wide. It is separate from team OIDC single sign-on, which routes a team through its own identity provider and allowed email domains.

Only providers with a complete client ID and client secret appear. Password, passkey, and team SSO remain available.

Availability

Google, GitHub, and Microsoft login are available in HitKeep Cloud and self-hosted HitKeep. Public social signup is a managed-cloud control. A self-hosted instance can use social providers for existing accounts, invitations, and account linking, but it does not gain open public signup from HITKEEP_SOCIAL_SIGNUP_ENABLED.

Before you configure a provider

You need:

• HitKeep 2.13.0 or later;
• an externally reachable HITKEEP_PUBLIC_URL;
• permission to create a confidential web or OAuth application at the provider;
• a separate client ID and client secret for each provider you enable;
• HTTPS for production callbacks;
• working outbound mail if Microsoft users may need HitKeep email confirmation.

Store client secrets in an environment file or secret manager. Do not commit them to compose.yml, screenshots, support tickets, or source control.

Set the public URL first

HitKeep derives every social callback from HITKEEP_PUBLIC_URL. A change to the scheme, host, port, or path prefix changes the callback. Update the provider registration before restarting production traffic.

Register the exact callback URLs

For a root deployment at https://analytics.example.com, register these three callbacks:

Provider	Callback URL
Google	https://analytics.example.com/api/auth/social/google/callback
GitHub	https://analytics.example.com/api/auth/social/github/callback
Microsoft	https://analytics.example.com/api/auth/social/microsoft/callback

If HITKEEP_PUBLIC_URL contains a path prefix, the prefix stays in the callback. For example:

https://www.example.net/hitkeep/api/auth/social/google/callback
https://www.example.net/hitkeep/api/auth/social/github/callback
https://www.example.net/hitkeep/api/auth/social/microsoft/callback

HitKeep Cloud uses region-specific callbacks:

EU Cloud

https://cloud.hitkeep.eu/api/auth/social/google/callback
https://cloud.hitkeep.eu/api/auth/social/github/callback
https://cloud.hitkeep.eu/api/auth/social/microsoft/callback

US Cloud

https://cloud.hitkeep.com/api/auth/social/google/callback
https://cloud.hitkeep.com/api/auth/social/github/callback
https://cloud.hitkeep.com/api/auth/social/microsoft/callback

The callback must match the provider registration exactly. Treat the scheme, host, port, path prefix, provider name, and trailing slash as significant.

Configure Google, GitHub, or Microsoft

Provider consoles change over time. The steps below name the current settings that matter to HitKeep, and each tab links to the provider’s primary documentation.

Google

1. Open Google Cloud Console → Google Auth Platform → Clients.
2. Select or create a project. Complete the app branding, audience, and consent-screen information required for the accounts that will use HitKeep.
3. Select Create client, then choose Web application.
4. Add the exact Google callback from the previous section under Authorized redirect URIs.
5. Create the client, then copy its client ID and client secret.
6. Set both HitKeep variables:

HITKEEP_SOCIAL_GOOGLE_CLIENT_ID=your-google-client-id
HITKEEP_SOCIAL_GOOGLE_CLIENT_SECRET=your-google-client-secret

HitKeep requests the standard openid and email scopes. The returned ID token must contain an immutable subject, an email address, and boolean email_verified: true. A Google identity without a verified email is rejected.

Google requires the callback in the authorization request to match an authorized redirect URI. See Google’s web-server OAuth setup and OAuth policy requirements.

GitHub

1. In GitHub, open Settings → Developer settings → OAuth Apps.
2. Select New OAuth App or Register a new application.
3. Enter a public application name.
4. Set Homepage URL to the public HitKeep URL.
5. Set Authorization callback URL to the exact GitHub callback from the previous section.
6. Register the application, generate a client secret, and copy the secret value.
7. Set both HitKeep variables:

HITKEEP_SOCIAL_GITHUB_CLIENT_ID=your-github-client-id
HITKEEP_SOCIAL_GITHUB_CLIENT_SECRET=your-github-client-secret

HitKeep requests only read:user and user:email. It uses the immutable GitHub user ID as the provider identity and requires a primary, verified GitHub email. Repository access is not requested.

A GitHub OAuth App accepts one callback URL. Use a separate OAuth App for production, staging, and local development when those environments have different callbacks. See Create a GitHub OAuth App and GitHub OAuth redirect rules.

Microsoft

1. In the Microsoft Entra admin center, open Entra ID → App registrations and select New registration.
2. Choose the supported account type that matches the tenant selector you will give HitKeep.
3. Open Authentication, add the Web platform, and register the exact Microsoft callback from the previous section.
4. Open Certificates & secrets, create a client secret, and copy its Value before leaving the page.
5. Copy the Application (client) ID from the app overview.
6. Set the client pair and tenant selector:

HITKEEP_SOCIAL_MICROSOFT_CLIENT_ID=your-application-client-id
HITKEEP_SOCIAL_MICROSOFT_CLIENT_SECRET=your-client-secret-value
HITKEEP_SOCIAL_MICROSOFT_TENANT=common

Choose the tenant selector deliberately:

HitKeep value	Accounts accepted	Matching Entra registration
common	Work, school, and personal Microsoft accounts	Any organizational directory and personal Microsoft accounts
organizations	Work and school accounts from any Entra directory	Any organizational directory
consumers	Personal Microsoft accounts	Personal Microsoft accounts
Tenant UUID	Accounts from one Entra tenant	Accounts in this organizational directory only

HitKeep requests openid email profile. It keys the identity by Microsoft tenant ID plus object ID, not by an editable email address. Microsoft email claims are not treated as provider-verified, so some first-use flows require HitKeep email confirmation.

See Microsoft app registration, supported account types, and web app sign-in setup.

Add the variables to Docker Compose

Add every provider variable to the HitKeep service, even if unused values remain empty:

environment:
  HITKEEP_PUBLIC_URL: ${HITKEEP_PUBLIC_URL:?set HITKEEP_PUBLIC_URL in .env}
  HITKEEP_SOCIAL_GOOGLE_CLIENT_ID: ${HITKEEP_SOCIAL_GOOGLE_CLIENT_ID:-}
  HITKEEP_SOCIAL_GOOGLE_CLIENT_SECRET: ${HITKEEP_SOCIAL_GOOGLE_CLIENT_SECRET:-}
  HITKEEP_SOCIAL_GITHUB_CLIENT_ID: ${HITKEEP_SOCIAL_GITHUB_CLIENT_ID:-}
  HITKEEP_SOCIAL_GITHUB_CLIENT_SECRET: ${HITKEEP_SOCIAL_GITHUB_CLIENT_SECRET:-}
  HITKEEP_SOCIAL_MICROSOFT_CLIENT_ID: ${HITKEEP_SOCIAL_MICROSOFT_CLIENT_ID:-}
  HITKEEP_SOCIAL_MICROSOFT_CLIENT_SECRET: ${HITKEEP_SOCIAL_MICROSOFT_CLIENT_SECRET:-}
  HITKEEP_SOCIAL_MICROSOFT_TENANT: ${HITKEEP_SOCIAL_MICROSOFT_TENANT:-common}

Place the real values in .env:

HITKEEP_SOCIAL_GOOGLE_CLIENT_ID=
HITKEEP_SOCIAL_GOOGLE_CLIENT_SECRET=
HITKEEP_SOCIAL_GITHUB_CLIENT_ID=
HITKEEP_SOCIAL_GITHUB_CLIENT_SECRET=
HITKEEP_SOCIAL_MICROSOFT_CLIENT_ID=
HITKEEP_SOCIAL_MICROSOFT_CLIENT_SECRET=
HITKEEP_SOCIAL_MICROSOFT_TENANT=common

Recreate the container so Compose applies the new environment:

docker compose up -d
docker compose logs --tail=100 hitkeep

A provider appears only when both its client ID and secret are non-empty. Microsoft also needs a valid tenant selector. A partial pair stays hidden instead of showing a button that cannot complete.

The full examples in Docker Compose installation include the same variables. The generated configuration reference remains the source of truth for variable names, flags, defaults, and secret redaction.

Verify the rollout

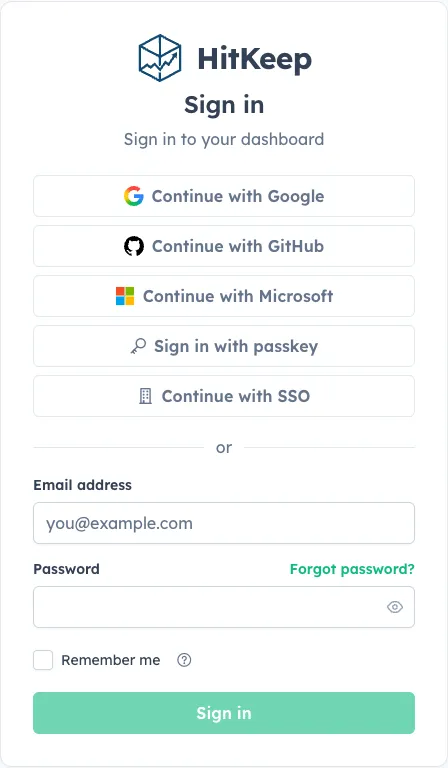

1. Open a private browser window at the HitKeep sign-in page.
2. Confirm that only the intended provider buttons appear.
3. Complete one login with each enabled provider.
4. Test an existing account, an invitation, and a user with MFA enabled.
5. From Settings → Security, link a second provider, sign out, and use it to sign back in.
6. Add a passkey or confirm password login before testing unlink protection.
7. Review the authentication events in the team activity log.

You can also inspect the public availability response:

curl -fsS https://analytics.example.com/api/auth/social/providers

The response contains display names for completely configured providers. It does not expose client IDs, secrets, provider subjects, or configured account details.

How accounts, invitations, and MFA behave

Verified-email rules

Provider	Identity key	Email rule
Google	OIDC sub	The ID token must contain a normalized email and boolean email_verified: true
GitHub	Numeric GitHub user ID	HitKeep selects the primary GitHub email and requires verified: true
Microsoft	Entra tenant ID plus object ID	Email is metadata and is not treated as provider-verified

HitKeep stores the immutable provider identity after linking. It does not use an editable email address as the long-term identity key, and it discards provider access, ID, and refresh tokens after the exchange.

Existing accounts and invitations

• A Google or GitHub identity with a verified email can link automatically to the existing HitKeep account with the same normalized email.
• A pending invitation stays bound to its invited email and requested role. HitKeep consumes it only after the provider flow proves the expected account boundary.
• An invitation can prove the target account for a Microsoft first link, so the invite flow does not need a second email confirmation.
• Disabling open social signup does not disable provider login, invitation acceptance, or account linking.

Microsoft confirmation

Microsoft does not provide the same verified-email guarantee used by the Google and GitHub flows. When an unauthenticated Microsoft login or cloud signup would attach or create an account without an invitation, HitKeep sends a 30-minute confirmation link to the target HitKeep email address.

An authenticated user linking Microsoft from Settings → Security has already proved the HitKeep session, so that link does not need the extra email round trip. A matching live invitation also proves the target account.

Outbound mail must work before these confirmation-dependent flows can finish. Configure and test HITKEEP_MAIL_* values first.

MFA handoff

Social sign-in does not bypass HitKeep MFA. If the resolved account has TOTP, passkey, recovery-code, or email-link factors enabled, HitKeep returns the normal MFA challenge before issuing the browser session. The chosen social provider and remember-me preference stay attached to that challenge for session and audit handling.

Team OIDC SSO behaves differently: the team’s identity provider owns its MFA and conditional-access policy. See OIDC Single Sign-On when the requirement is centralized workforce authentication.

Link and unlink providers

An authenticated user manages linked identities under Settings → Security.

• Link: choose an unlinked configured provider and complete its provider flow.
• Unlink: choose a linked provider. If password is the only alternative login method, enter the current password so HitKeep can verify that it still works.
• Protection: unlinking is refused when it would remove the last usable primary login method.

Another linked social provider or a registered passkey counts as an alternative method. Team OIDC access and MFA recovery factors do not replace the primary-method guard. Add and test a password, passkey, or second social provider before removing the only working social identity.

Troubleshooting

Symptom	What to check
Provider button is missing	Set both the provider client ID and secret, recreate the container, and check the Microsoft tenant selector when relevant. HitKeep hides partial configurations.
Provider reports a redirect URI mismatch	Compare the provider callback with HITKEEP_PUBLIC_URL, including HTTPS, host, port, path prefix, provider name, and trailing slash.
social_provider_unavailable	Check the client secret, provider application status, outbound DNS and HTTPS, and Google or Microsoft discovery access.
social_email_unverified	Google must return boolean email_verified: true. GitHub must expose a primary verified email through user:email.
Microsoft says verification was sent	This is expected for an unproved first login or signup. Check SMTP delivery and use the newest confirmation link within 30 minutes.
social_state_invalid	Start again from the HitKeep button in one browser tab. Old, replayed, cross-browser, or expired state cannot be reused.
social_identity_conflict	Sign in through an existing method and inspect linked providers. One provider identity cannot belong to two HitKeep users, and one user cannot link two identities from the same provider.
MFA appears after provider login	Complete the account’s existing HitKeep MFA challenge. Social sign-in proves the primary identity but does not remove local MFA.
Invitation fails	Confirm that the invitation is live and that the provider account matches the invited email. Start the provider flow from the invitation page.
Unlink is refused	Add and test another social provider or passkey. When password is the remaining alternative, enter the current password before unlinking.
